GWR 2426 Toplight Full Third

From SVR Wiki
Jump to: navigation, search
GWRGreat Western Railway 2426 Toplight Full Third
GWR 2426 20150307.jpg
GWRGreat Western Railway Toplight Full Third 2426 at Hampton Loade in 2015
Built By GWRGreat Western Railway Swindon
Status Stored awaiting overhaul
Number 2426
Other numbers W9918W
History
Built 1910
Designed By ChurchwardGeorge Jackson Churchward, Chief Mechanical Engineer (CME) of the Great Western Railway 1902-1922
Diagram C30
Lot 1167
Type TK
Length 56ft 0in
Weight 27t 5cwt
Seats 64 third
1952 Withdrawn from passenger service
1972 Entered preservation on SVRSevern Valley Railway

Carriages

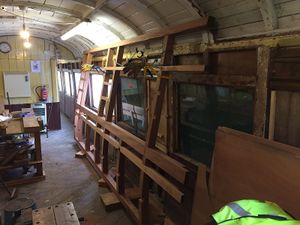

Bodyside frame components for GWRGreat Western Railway 9581 Wheelchair accessible Buffet Car being trial assembled inside 2426 in March 2018
GWRGreat Western Railway Toplight Full Third 2426 was designed by G.J. ChurchwardGeorge Jackson Churchward, Chief Mechanical Engineer (CME) of the Great Western Railway 1902-1922 and is the oldest bogie coach on the SVRSevern Valley Railway. It is mounted on 8 foot American bogies.

2426 in service

2426 was built at Swindon in 1910 as part of Lot 1167 to Diagram C30. Originally the coach seated 64 passengers in eight compartments and included a toilet at each end. Eight doors per side were included, located in and opposite each compartment.[1] It was used on passenger services until May 1952.[2]

In 1952 it was converted to a camping coach and renumbered W9918W.[3] Four of the compartments became sleeping accommodation, while other compartments were removed to create kitchen and living areas. Many of these camping coaches were removed in the 1960s, and 2426 was then used by the BRBritish Rail or British Railways(W) Signal and Telegraph department, before being withdrawn in the early 1970s and placed in store at Swindon.

2426 in preservation

2426 was purchased by SVRSevern Valley Railway(H) in 1972 for use as volunteer dormitory accommodation, initially at Bridgnorth and from 1988 to 2016 at Hampton Loade. It was then moved into storage at Kidderminster pending overhaul, with its place at Hampton Loade being taken temporarily by GWR Riding Van 55 until fitting out of volunteer accommodation in the station building was completed. During its use as a dormitory vehicle, ownership was transferred to the Great Western (SVR) Association.

In March 2017 2426 spent a few weeks in the siding on Sandbourne Viaduct before moving into Bewdley Down Yard for conservation including frame, body panel and window work, as it needs substantial structural repair. It became the LNER Carriage Group's workshop, replacing GWR 9581 Wheelchair accessible Buffet Car (formerly 5043 Full Third) while the Association restored GWR 4786 Full Third.

In October 2022 the Association announced that work on 4786 and 2426 would continue in parallel, initially concentrating on bodywork repairs, the underframe and solebarThe outer member of a vehicle's underframe, running from end to end below the body, scissors gangway and internal doors and fittings. Updates are issued on the website and GW(SVR)A Facebook (private group) pages.

In October 2023 the Association launched a leaflet appealing for funds to complete the restoration of 2426. Titled "A ChurchwardGeorge Jackson Churchward, Chief Mechanical Engineer (CME) of the Great Western Railway 1902-1922 'Bars 1' Toplight to complete the set", the appeal asks donors to "Help restore the Association's oldest carriage to join Toplights 'Bars 2' 9055 and 'Multibars' 3930 and 9369."[4]

See also

References

  1. Longworth (2013) p.40.
  2. GW(SVR)A stock list (Retrieved 1 June 2021)
  3. Longworth and GW(SVR)AGreat Western (SVR) Association state it was renumbered in May 1952; SVRSevern Valley Railway Stock Book Ninth Edition quotes 1957
  4. Leaflet distributed at the Association's AGM, 21 October 2023
  • Railway Heritage Register Carriage Survey
  • SVRSevern Valley Railway Stock Book Ninth Edition
  • Great Western (SVRSevern Valley Railway) Association web site
  • Great Western (SVRSevern Valley Railway) Association information notice on 2426 while at Hampton Loade
