Kidderminster Junction signal box

From SVR Wiki
Jump to: navigation, search
Kidderminster Junction Signal Box in 2008 (Geograph)
Kidderminster Junction and the connections to the Severn Valley line in February 1984

Although not on SVR property, the BRBritish Rail or British Railways(W) designed Kidderminster Junction signal box formerly controlled the main line connection to the Severn Valley Railway in conjunction with the SVRSevern Valley RailwaySVRA:Severn Valley Railway AssociationSVRS:Severn Valley Railway Society's own Kidderminster signal box.

Kidderminster Junction

The name "Kidderminster Junction" referred to the junction between the former Oxford Worcester & Wolverhampton line and "The Loop" leading to Bewdley and the original Severn Valley line. The junction, which is shown on this extract from the 1903 OS map, was created in 1878 with the opening of the Loop (bottom left).

Early signal boxes

OS Maps of 1903 (left) and 1938 (right)

On 29 August 1877, as part of preparations for the opening of the loop the following year, the GWRGreat Western Railway authorised expenditure for completion of the block system between "the north and south boxes at Kidderminster" as well as block and single needle telegraph apparatus for the new line itself.[1] The "south box" presumably referred to a new box built to control the junction, with the"north box" being the main signal box in the station itself. The first Junction box was perhaps McKenzie and Holland with a 35 lever frame, replaced by a new 40 lever frame circa 1912.[2]

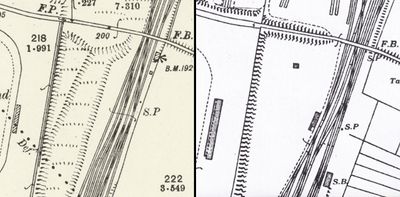

The illustration opposite shows two extracts from OS maps of the junction. In the 1903 map, the building to the east of the main line immediately south of the "Wooden Bridge" (FB) is not given the usual "SB" label, but appears to be the original Junction signal box. At least one subsequent map[3] did include "SB" for that building.

A later 1938 OS map which is reproduced as Fig. X in "Western Main Lines, Worcester to Birmingham via Kidderminster" (Mitchell & Smith) shows a signal box at a location further south, beyond the signal post (SP), with the original box no longer present. Narrative in the book accompanying the 1938 OS map extract refers to "The 1924 Junction box". The Signalling Record Society Website provides the information that "A replacement GW type 28B box was built here in December 1937".

1953 signal box

The most recent signal box was of quite a modern design, having been built in October 1953, and contained a 63 lever frame. The GWRGreat Western Railway 1937 signal box on the same site was demolished by a derailed wagon earlier in 1953, and a temporary signal box was used for a short while until the replacement was built[4][5].

In August 2012 Network Rail carried out an upgrade of signalling in the area, whereby responsibility for signalling was transferred to the West Midlands Signalling Centre (WMSC) at Saltley. Following this upgrade, Kidderminster Junction signal box was closed on 24 August 2012 and was then demolished on 22-23 September 2012. The lever frame from the box has been saved by the SVRSevern Valley RailwaySVRA:Severn Valley Railway AssociationSVRS:Severn Valley Railway Society for spares and as a possible new frame for a new Bridgnorth Signal Box.

See also

References

  1. Marshall (1989) p. 128.
  2. Signal Box Register, Volume 1: Great Western, revised 2011 edition, Signalling Record Society (plus correction sheet #9)
  3. Mitchell and Smith (2007) fig. V.
  4. Kidderminster Jcn Signal Box, Signalling Record Society Website. http://www.s-r-s.org.uk/html/gws/S2605.htm. Accessed 10/05/2015
  5. Stourbridge Line Signal Boxes - Kidderminster Junction | Martin's Railway Ramblings. http://martincreese.blogspot.com/2012/07/stourbridge-line-signal-boxes.html. Accessed 10/05/2015

Links

Kidderminster Junction Signal Box on the Kidderminster & District Archaeological & Historical Society web site
