Burlish Branch Junction appears in the Engineer's Line References for the Severn Valley Railway. The junction with the Severn Valley branch was situated 3 chainsAs a unit of measurement, 22 yards or 1/80th of a mile (66 yards) west of Stourport station, towards Bewdley in the direction of travel. The ELRs record the Burlish Branch as a 'dead end' line with a length of 42 chainsAs a unit of measurement, 22 yards or 1/80th of a mile, placing the northern end at the terminus of the Steatite & Porcelain Products private siding, adjacent to Burlish Halt.

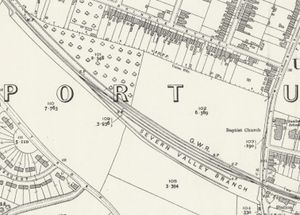

From opening in 1862, the goods sidings at Stourport were originally situated east of the station. On 11 April 1913 the GWRGreat Western Railway authorised the construction of further sidings west of the station. OSOrdnance Survey Maps after that time suggest these were accessed from the south only, with no north-facing connection at the north end. The two southernmost sidings faced the station and appear to have been accessed via a long head-shunt.
Extension to create the Burlish Branch

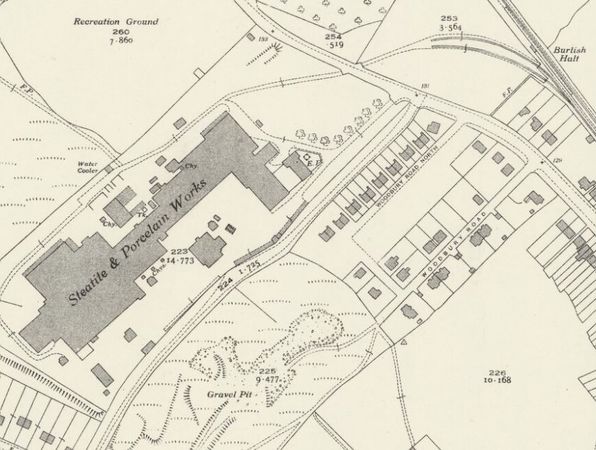

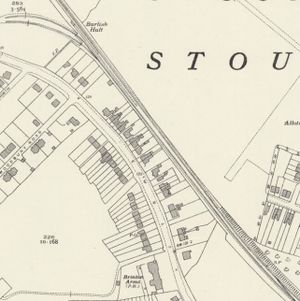

Steatite and Porcelain Products Company's premises opened in 1929 and were (and are) situated in the vicinity of Burlish Halt, which opened in 1930 principally to serve the works. An extension to the original head-shunt to create a private siding for the company also opened in 1929. Originally this connected to the works via a crossing on the Stourport to Bewdley road. The crossing was closed in 1933, although the sidings remained in use. By 1939 the siding had become a long goods loop, access to the north end of which was controlled by the Park Sidings ground frame.
By 1960 this loop was described as "the former independent line to the Steatite Company's private siding" and was available as storage accommodation for up to 39 wagons with the adjacent loop furthest from the running line able to hold 45 wagons.
The Park Sidings were used for excursion trains with "...portable steps being provided to enable passengers to enter the trains, the steps being moved by the staff from compartment to compartment, as required by the progress of the loading." When backing an empty train in to pick up passengers, staff were instructed to "...warn all persons to stand clear...and...prevent any attempt on the part of the passengers to enter the moving vehicles".
Steatite & Porcelain Products was established in 1907 and in 1910 incorporated as Ernst Hildebrant Ltd. It changed names in 1917 to the Clay Ring Co. Ltd. and in 1928 to Steatite & Porcelain Products Ltd. It was acquired in 1941 by ICI Metals Division and in 1964 by Morgan Advanced Ceramics Ltd (now Morgan Advanced Materials plc).
A 1937 report by the GWRGreat Western Railway Traffic Research Committee states that in the three months ending November 1936, Steatite & Porcelain Products had sent 422 tons by rail, 152 tons by road and 6 tons by canal.
- Private sidings connected to the Severn Valley Railway
- Pre-1963 map
- List of historical Signal Boxes and Ground Frames
- Marshall (1989) p. 90.
- Marshall (1989) p. 90.
- Birmingham Traffic District Sectional Appendix 1960
- Mitchell & Smith (2007), fig 7
- Grace's guide to British Industry webpage (retrieved 7 October 2018)
- Minutes of meeting of the GWRGreat Western Railway Worcester Division Traffic Research Committee, held by The National Archive
